2N-S E-CLASS 'SeaCatcher' Purse Seine Winch

SALMON FISHERMEN!  You asked for us to provide a GREAT Purse Winch for a 48 to 56 Foot Seiner!  Not a 'Bare-Bones' Gypsy Purse Winch, but a True 'SeaCatcher' Purse Winch, that will not 'Break-the-Bank!  We Heard you!  And here it is, with a VERY SPECIAL PRICE!!

This InMac-Kolstrand's 'SeaCatcher E-CLASS' Model 2N-S-6T Purse Winches can't be beat!  This Special 'SeaCatcher' 2N-S-6T Winch comes Complete with a Winch Frame that is 6" Taller than the Standard 2N-S Purse Winch, is equipped with 'E-CLASS' Cast Iron Gypsies, 17" Diameter Bronze Pursing V-Sheaves and Large 5" Diameter Stainless Steel Idler Rollers that are Ball Bearing equipped, with Large Diameter Stainless Steel Idler Shafts, Stainless Steel Horizontal Roller with Ball Bearings, and Stainless Steel Splitter.  And Yes, this SeaCatcher is equipped with the proven/durable CharLynn 6000 Series Hydraulic Motor Drive.  This winch will perform for you for many years...  Guaranteed!

What makes the Standard SeaCatcher Line of Purse Winches so good are the included exclusive features not found in other Purse Winches.  You'll especially like the provided Grease Panel which makes lubricating the Idler Sheave Bearings, the Main Gypsy Shaft Bearings, and the Drive Chain and Sprockets a breeze without having to remove any inspection cover plates.

All 'SeaCatcher' and 'PurseDominator' Purse Winches come Standard with the E-STOP Emergency Kill Switch Installed into the Winch Horn.  E-Stop Control Valving with Wiring Diagram is Available as an option...  Plase consult with us further to see how to add to your system.

Winch Housing is of Sturdy Steel Construction with Large Radius Edges, then Hot-Dipped Galvanized

Powerful CharLynn 6,000 Series Hydraulic Motor is used exclusively for maximum performance.

• For Application Assistance, Expedited Delivery Times, Commercial Pricing, or any unanswered questions concerning this product, please call sales in the Kolstrand Marysville Commercial Office at 206-784-2500 or e-mail sales@kolstrand.com

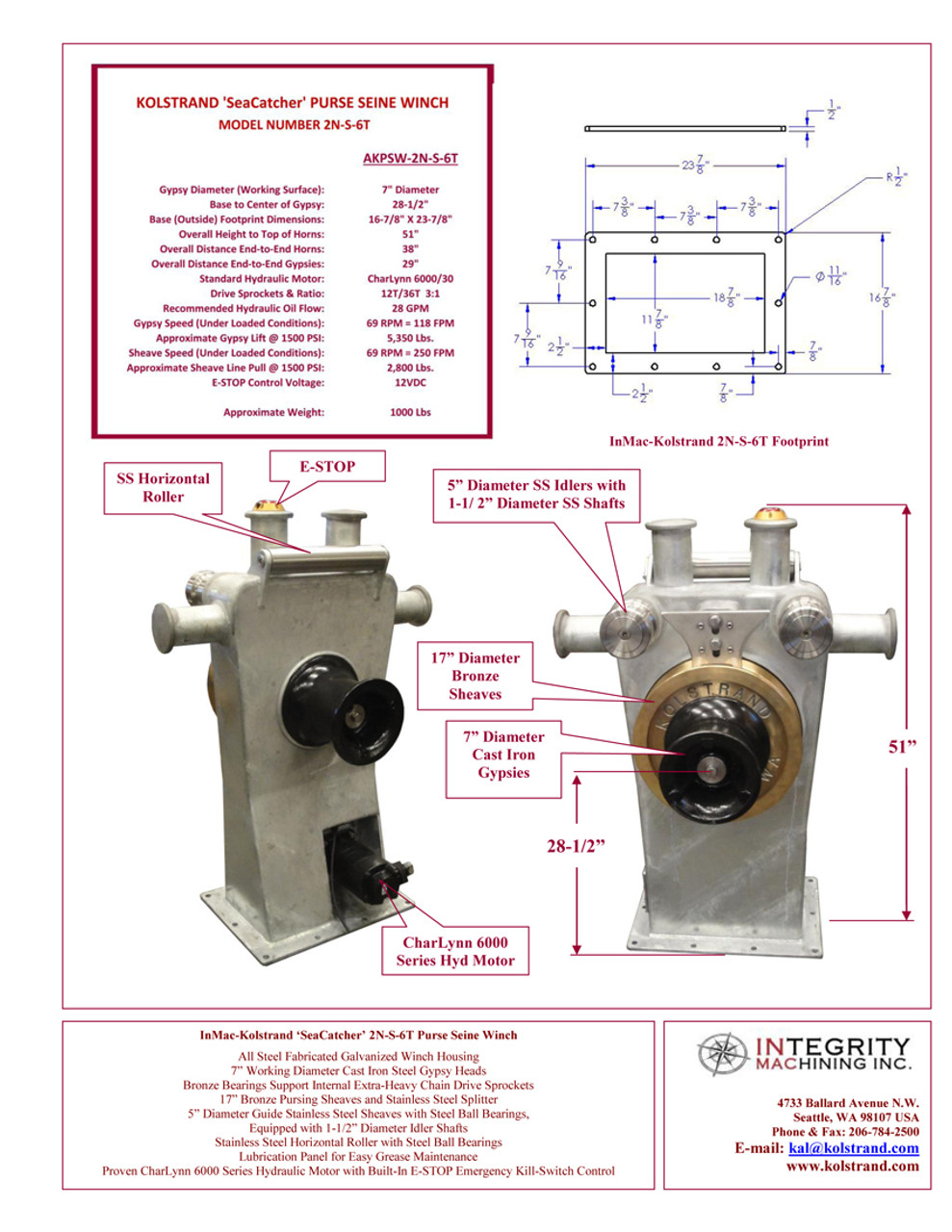

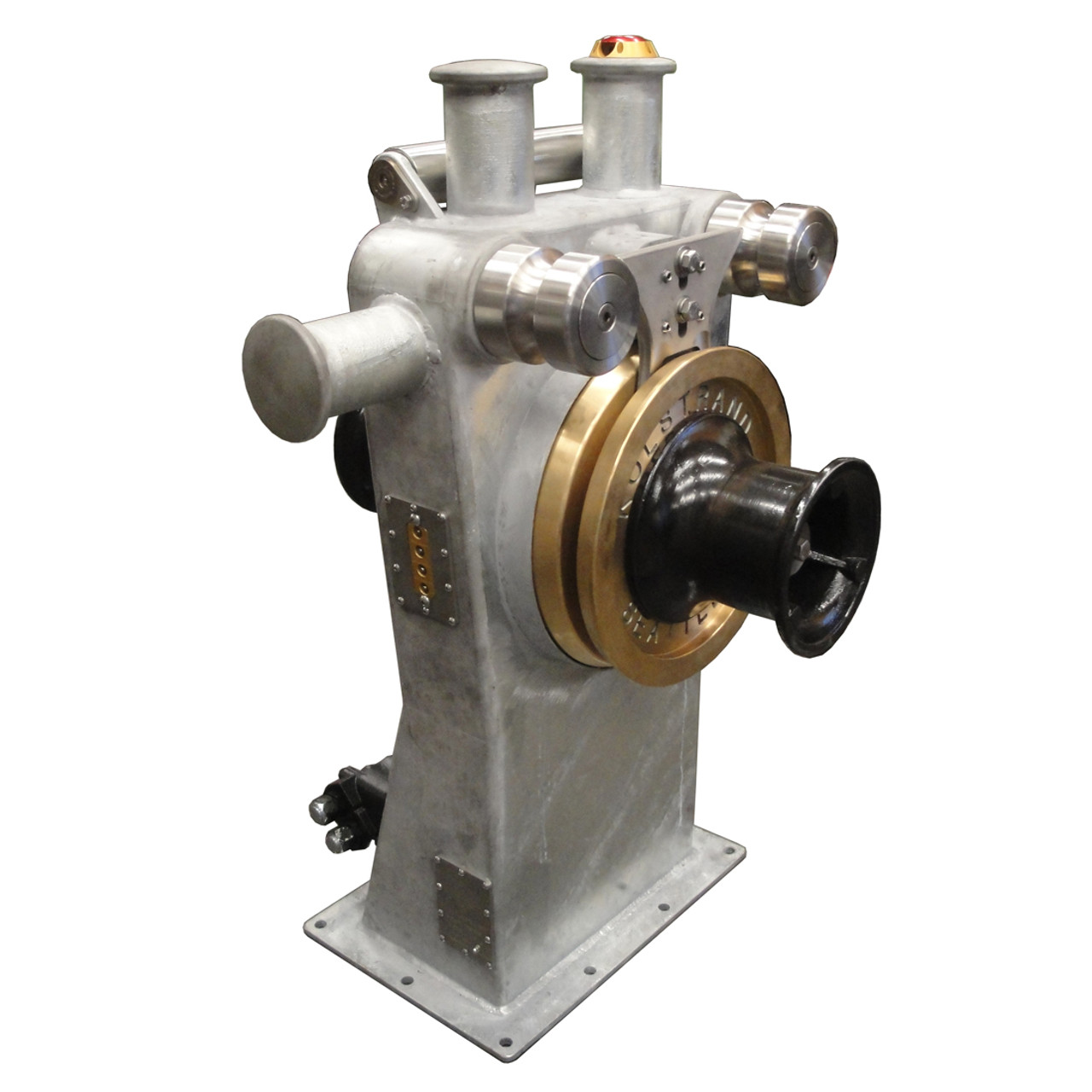

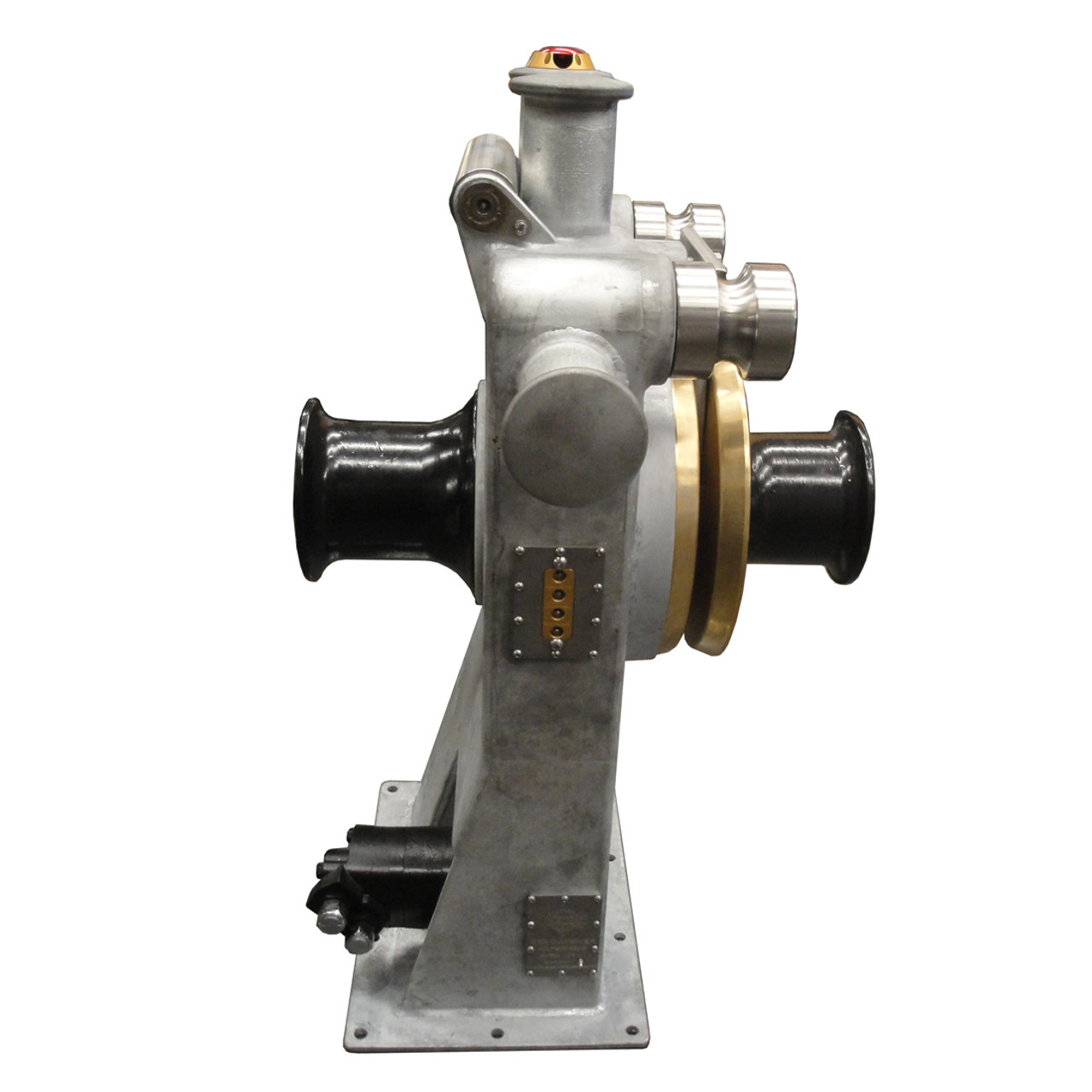

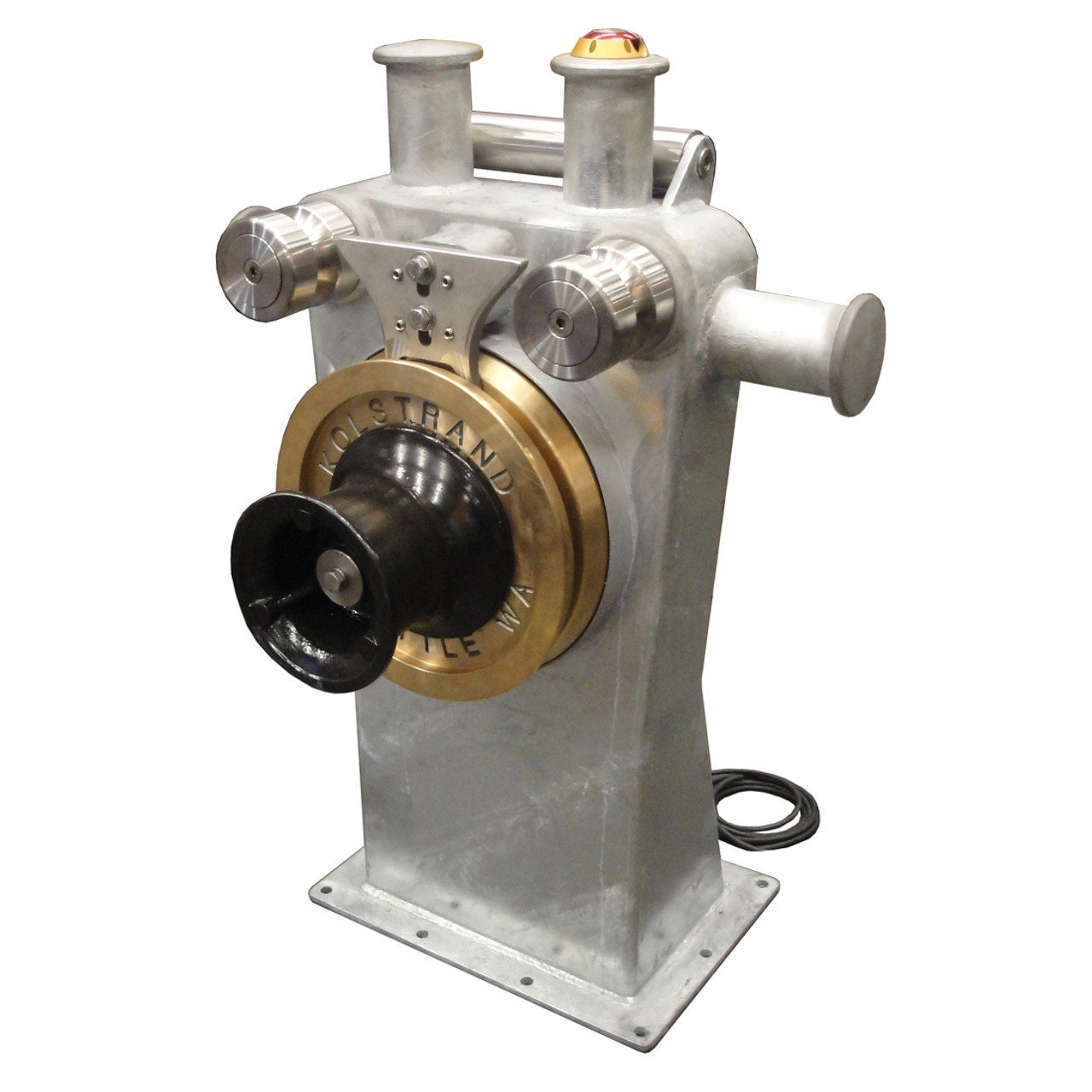

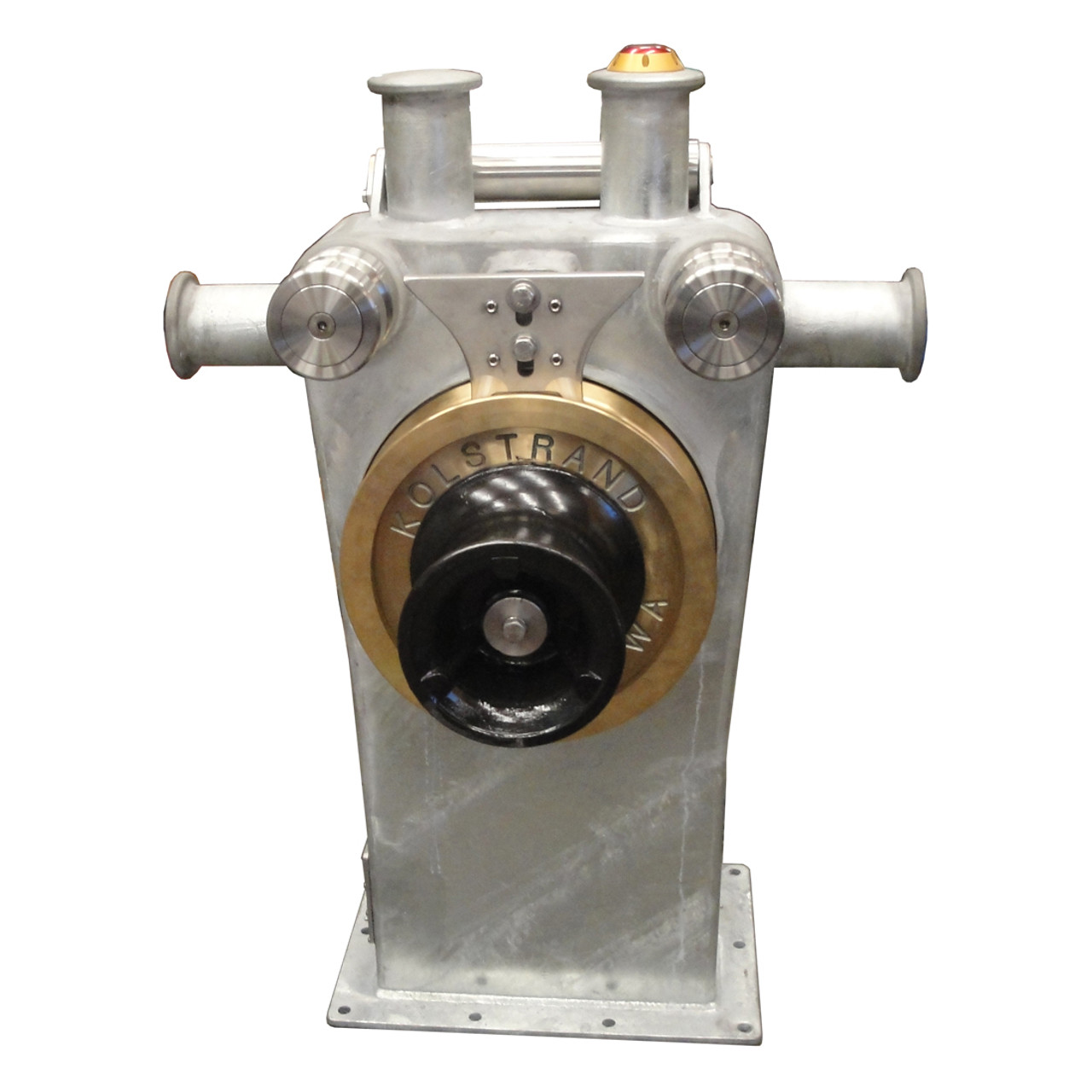

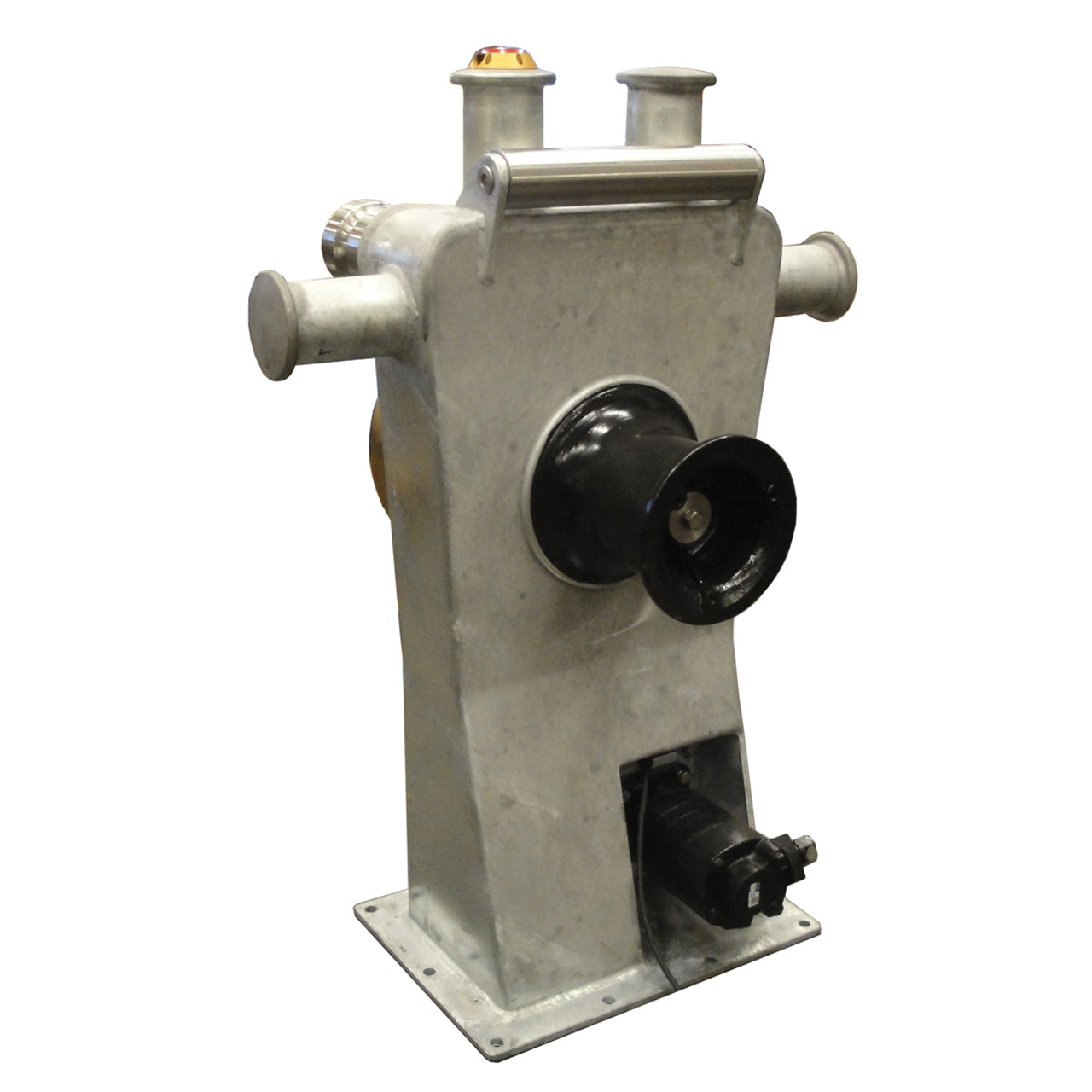

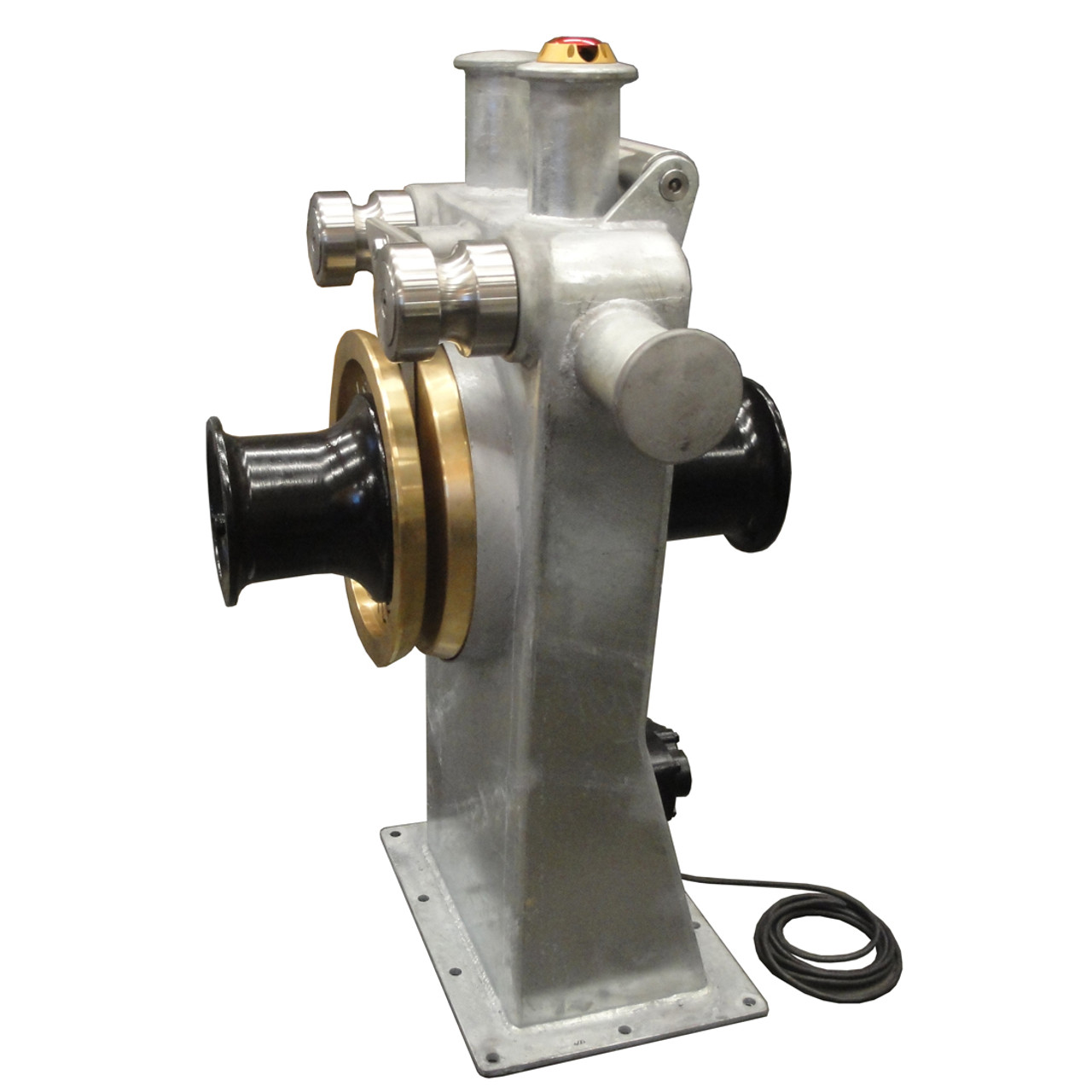

Kolstrand SeaCatcher 2N-S-6T E CLASS Steel Galvanized Purse Seine Winch

Winch weighs Approximately 700 Lbs

Kolstrand 2N-S Winch Performance: Based upon 28 GPM @ 1500 PSI

         With CharLynn 6000/30 Hydraulic Motor

          Gypsy Line Pull: 5,200 Lbs - Gypsies Turn 70 RPM Under Loaded Conditions = 120 FPM

          Sheave Line Pull: 3,000 Lbs = 230 FPM

---------------------------

CONTINENTAL US SHIPMENT COSTS: As this Kolstrand Item/Product weighs more than 150 Lbs, it must be shipped Via Truck/Surface Freight to you. As Truck/Freight Charges change daily due to the Cost of Fuel, Insurance, Residential Delivery Charges, Liftgate Charges, etc., the following Freight Charges are Only for Budgetary Purposes, to be used only as guide for you to Estimate your total Delivered Shipping Costs. Actual Charges will be E-mailed to you 1 to 2 Days following your Placed Order, for you to approve of the charges prior to Shipment.

Again, the Freight Charges Below are only to be used as AN ESTIMATE FOR BUDGETARY PURPOSES! Your Actual Charges will most likely be LESS!

If we are to ship this item to the West Coast Region (WA, OR, CA, ID, UT, WY, MT, NV, CO, AZ, NM), we Estimate that it will Cost $950.00

If we are to ship this item to the Central Region (TX, LA, MS, OK, AR, KS, MO, NE, IA, IL, IN, OH, SD, ND, MN, WI, MI), we Estimate that it will Cost $1,250.00

If we are to ship this item to the East Coast Region (ME, NH, VT, MA, CT, PA, RI, WV, NJ, NY, VA, KY, TN, NC, SC, GA, AL, FL), we Estimate that it will Cost $1,360.00
