  • Kolstrand 'SeaCatcher' 3N-S-57 P-CLASS Steel Galvanized Purse Seine Winch with 8 Inch C.I. Gypsy Heads, 20 In BRZ Purse Sheaves with Stainless Steel Idlers & Splitter, and E-STOP Kill Switch Arrangement.
  • Kolstrand 'SeaCatcher' 3N-S-57 P-CLASS Steel Galvanized Purse Seine Winch with 8 Inch C.I. Gypsy Heads, 20 In BRZ Purse Sheaves with Stainless Steel Idlers & Splitter, and E-STOP Kill Switch Arrangement.

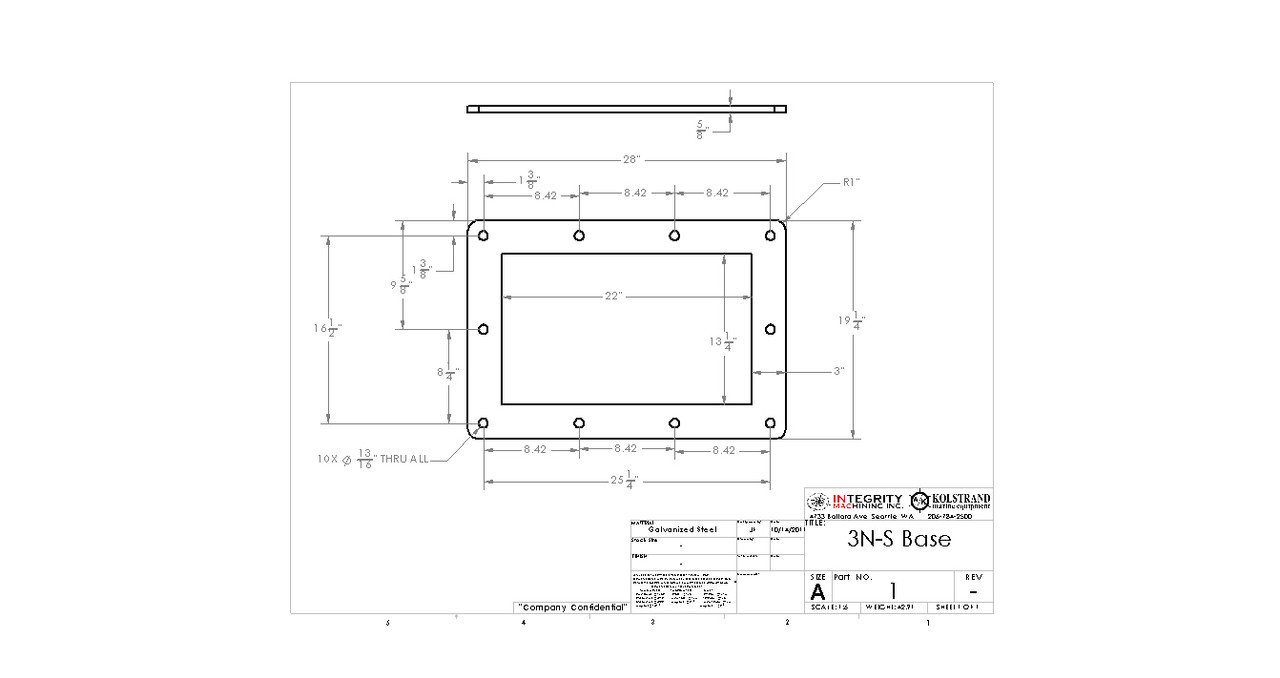

  • Kolstrand 'SeaCatcher' 3N-S-57 P-CLASS Purse Seine Info Drawing

3N-S 'P-CLASS' - 'SeaCatcher' Purse Seine Winch

$30,163.00
SKU:
AKPSW-3N20CI-BRZ-40-ES 'P'Winch
Availability:
10 to 12 Weeks After Your Order Date

 Product Description

SALMON FISHERMEN!  You asked for us to provide the BEST Purse Winch, and InMac-Kolstrand Listened!  InMac-Kolstrand's Line-up of 'SeaCatcher' Purse Winches can't be beat!

Kolstrand's 'SeaCatcher' SW3N-S P CLASS Steel Galvanized Purse Seine Winch is outfitted with Features not found anywhere else! Features include:

8" Cast Iron Gypsies, 20" Diameter Bronze V-Sheaves, Stainless Steel Horizontal Roller with Stainless Steel Bearings, Stainless Steel Splitter and Large Stainless Steel Idler Rollers with Large Diameter Stainless Steel Idler Shafts equipped with Stainless Steel Bearings

All 'SeaCatcher' Winch Housings are of Sturdy Steel Construction with Large Radius Edges, then Hot-Dipped Galvanized

All 'SeaCatcher' Purse Winches come Standard with the E-STOP Emergency Kill Switch Installed into the Winch Horn.   E-Stop Control Valving with Wiring Diagram is Available as an option...  Plase consult with us further to see how to add to your system.

Powerful CharLynn 10,000 Series Hydraulic Motors, in sizes compatible with your Hydraulic System

Note: The InMac-Kolstrand SeaCatcher Purse Winch is available 6" Taller as an Option. If you want your new Purse Winch Housing a little taller, just let us know!  We'll be happy to advise what extra Price might be necessary.

  • For Application Assistance, Expedited Delivery Times, Commercial Pricing, or any unanswered questions concerning this product, please call Kal Harris in the Kolstrand Seattle Commercial Office at 206-784-2500 or e-mail kal@kolstrand.com


Kolstrand SeaCatcher 3N-S Steel Galvanized Purse Seine Winch

Winch weighs Approximately 1000 Lbs

Kolstrand 3N-S Winch Performance: Based upon 40 GPM @ 1500 PSI

         With CharLynn 10000/57 Hydraulic Motor

         Gypsy Line Pull: 9,200 Lbs - Gypsies Turn 51 RPM Under Loaded Conditions = 108 FPM

         Sheave Line Pull: 4,900 Lbs = 200 FPM

---------------------------

CONTINENTAL US SHIPMENT COSTS: As this Kolstrand Item/Product weighs more than 150 Lbs, it must be shipped Via Truck/Surface Freight to you. As Truck/Freight Charges change daily due to the Cost of Fuel, Insurance, Residential Delivery Charges, Liftgate Charges, etc., the following Freight Charges are Only for Budgetary Purposes, to be used only as guide for you to Estimate your total Delivered Shipping Costs. Actual Charges will be E-mailed to you 1 to 2 Days following your Placed Order, for you to approve of the charges prior to Shipment.

Again, the Freight Charges Below are only to be used as AN ESTIMATE FOR BUDGETARY PURPOSES!
Your Actual Charges will most likely be LESS!

If we are to ship this item to the West Coast Region (WA, OR, CA, ID, UT, WY, MT, NV, CO, AZ, NM), we Estimate that it will Cost $950.00

If we are to ship this item to the Central Region (TX, LA, MS, OK, AR, KS, MO, NE, IA, IL, IN, OH, SD, ND, MN, WI, MI), we Estimate that it will Cost $1,250.00

If we are to ship this item to the East Coast Region (ME, NH, VT, MA, CT, PA, RI, WV, NJ, NY, VA, KY, TN, NC, SC, GA, AL, FL), we Estimate that it will Cost $1,360.00

.
